Key Features

• User-Friendly Interface: Navigate easily through setup, analysis, and reporting.
• Calibration Wizard: Guides you through the calibration process for accurate results.
• Automated Data Acquisition: Streamlines the scanning process with real-time data monitoring.
• Re-Gating Function: Allows re-gating of scan data for a clean and accurate scan.
• 3D Corrosion Modeling: Stitch multiple scans together to generate a comprehensive 3D model.
• Customizable Reports: Create job-specific templates for automated and repeatable reporting.

System Features

• Optimize data return with a proprietary curved gate.
• Generate a 3D model of scan data and export to an external viewer.
• Re-gate scan data after the scan is complete.
• Perform B31G analysis on scan data with automated analysis.
• Customize reports and create templates for each individual job.
• Export a table of the min, max, and mean thickness of each scan.

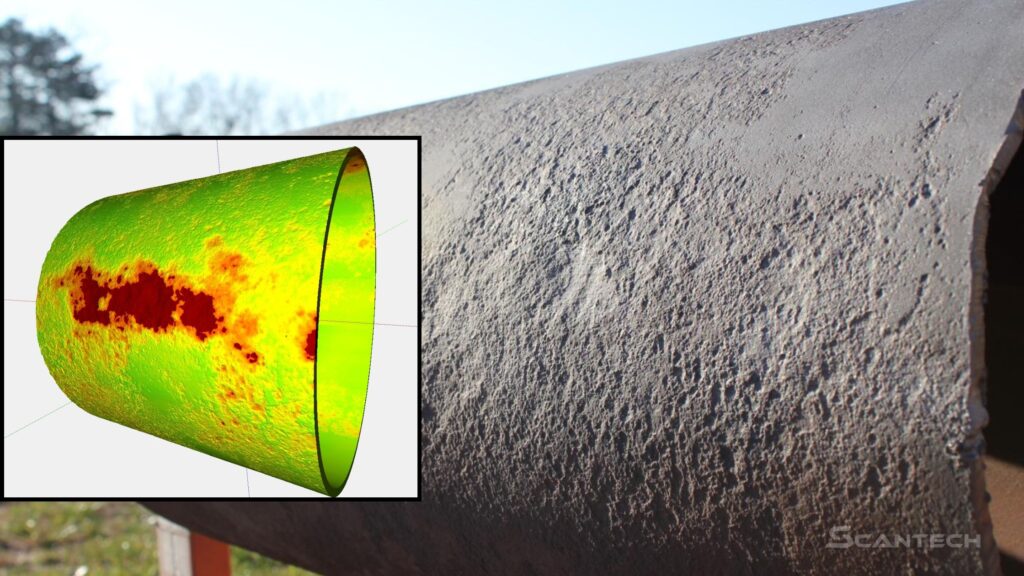

3D Modeling

Analyst XR™ allows you to generate a 3D model of the pipe or vessel from multiple scans. The software automatically stitches together scans to create a detailed and comprehensive model, which can be exported for external viewing or further analysis.

Reporting

Generating reports is fast and easy with Analyst XR™. Create and save customizable templates unique to each job, efficiently producing repeatable reports. Drag and drop elements such as scan data, screenshots, minimum points, textboxes, and logos onto the report. Customize fonts, colors, and sizes to meet specific customer needs.

Re-Gating

The re-gating function allows you to re-gate a single point, region, or the entire scan to eliminate interference and get the most accurate scan map possible. Gates are easy to manipulate and can be adjusted simply by clicking and dragging, modifying the length, height, and curvature for the most effective gate.

Real-Time View

Monitor data in real-time as the scanner maps corrosion, allowing you to make adjustments to the gain during the scan for optimal results.

Minimum Points

Analyst XR™ automatically scans a grid of data to find the thinnest points on the vessel, grouping similar points to exclude outliers. Use function keys to scroll through minimum points and save screenshots for the final report.

Repositioning

Pause and resume scans seamlessly, allowing you to reposition the scanner if an obstruction is encountered, and continue scanning from the new position.

System Requirements

• OS: Windows 10/8.1/8/7 (32 and 64-bit)
• Processor: Any Intel or AMD x86-64 processor
• RAM: 4 GB (8 GB minimum, 16 recommended)
• Disk Space: 1 TB (minimum recommended)
• Graphics: No specific graphics card required
