Phased Array Ultrasonic Testing (PAUT) is transforming the field of non-destructive testing (NDT) by providing precise, efficient, and reliable inspection methods. This technology is widely used across industries like oil and gas, aerospace, and power generation to detect flaws and ensure structural integrity without damaging the materials or structures being inspected.

In this blog, we’ll dive into what PAUT is, how it differs from traditional ultrasonic testing (UT) and radiographic testing (RT), the steps involved in a PAUT procedure, and its many industrial applications.

What is PAUT in NDT?

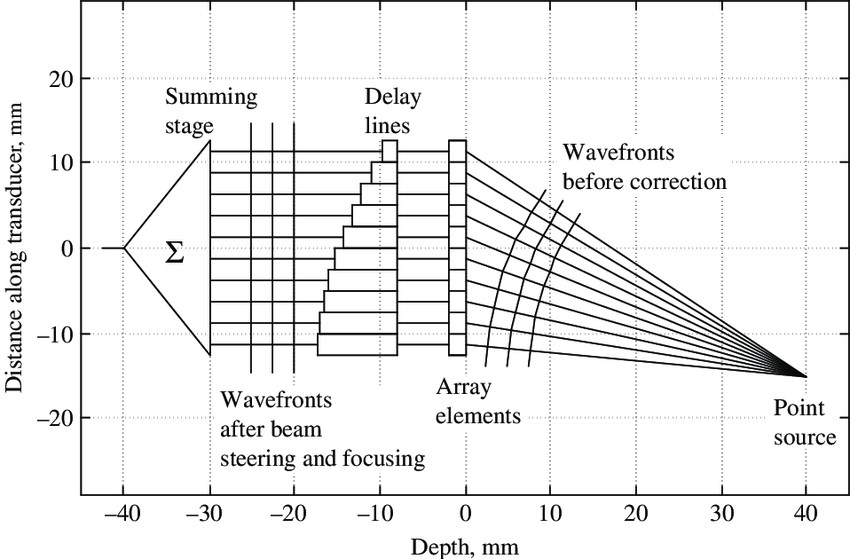

Phased Array Ultrasonic Testing (PAUT) is an advanced ultrasonic testing technique that uses multiple transducer elements arranged in an array. These elements are individually controlled with electronic timing, enabling the ultrasonic beam to be steered, focused, and scanned electronically.

Unlike traditional ultrasonic testing, which uses a single transducer emitting waves at a fixed angle, PAUT allows for:

• Dynamic beam steering

• High-resolution imaging of flaws

• Comprehensive coverage of complex geometries

By providing real-time visualization of internal structures, PAUT helps industries identify defects like cracks, inclusions, and corrosion efficiently.

What is the Difference Between UT and PAUT?

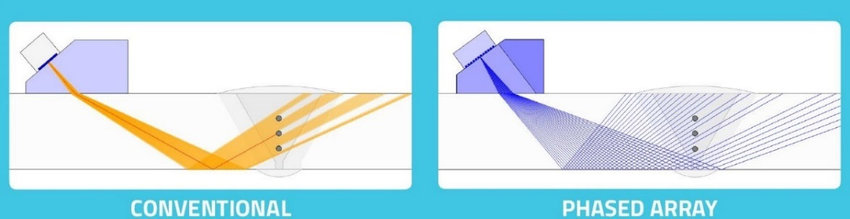

Traditional Ultrasonic Testing (UT) uses a single transducer to emit ultrasonic waves at a fixed angle. In contrast, PAUT employs an array of transducers that can electronically steer and focus the beam. Here’s a comparison:

ASPECT	UT	PAUT
BEAM DIRECTION	FIXED ANGLE	STEERABLE AND FOCUSABLE

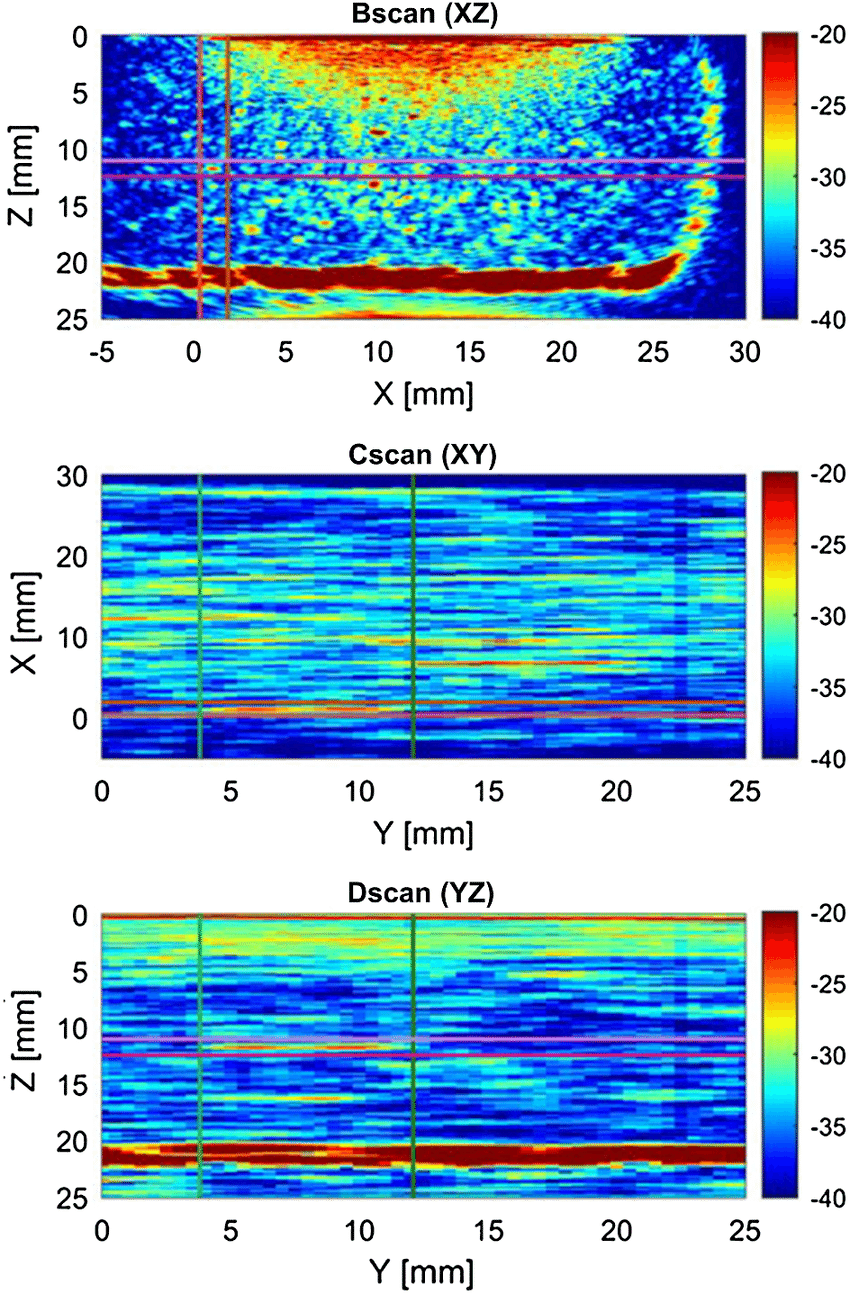

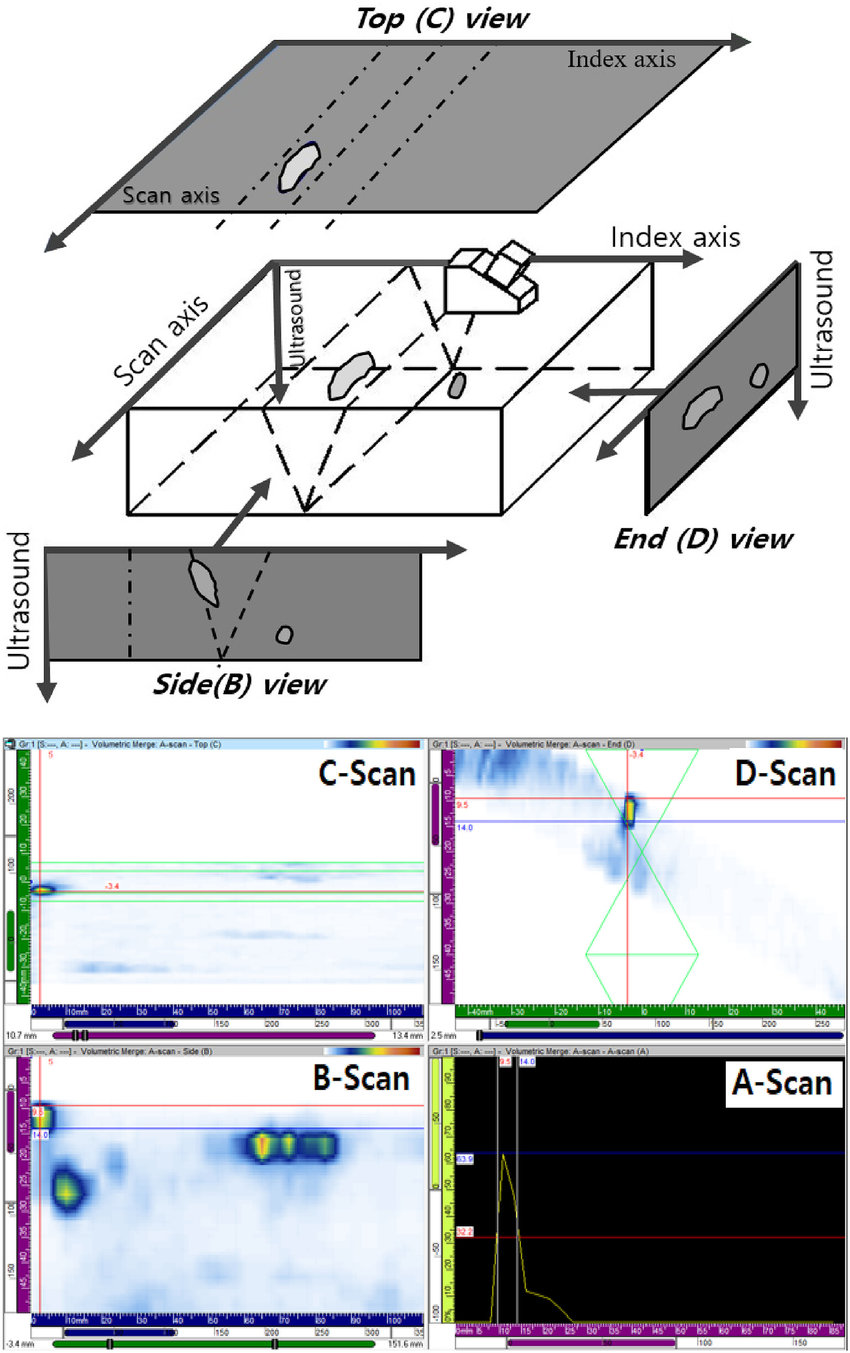

DATA VISUALIZATION	BASIC WAVEFORM (A-SCAN)	DETAILED 2D AND 3D IMAGEING (B-SCAN, C-SCAN)
APPLICATIONS	SIMPLE GEOMETRIES	COMPLEX GEOMETRIES AND HARD-TO-REACH AREAS

PAUT’s advanced imaging capabilities make it a go-to option for inspecting challenging geometries.

What is the Difference Between RT and PAUT?

Radiographic Testing (RT) and PAUT are both effective NDT methods, but they differ in technology, safety, and practicality.

Radiographic Testing (RT):

• Uses X-rays or gamma rays to create internal images.

• Requires strict safety protocols due to radiation exposure.

• Effective for detecting volumetric defects.

Phased Array Ultrasonic Testing (PAUT):

• Uses ultrasonic waves, eliminating the need for ionizing radiation.

• Safer for operators and environmentally friendly.

• Detects both surface and subsurface flaws with real-time imaging.

PAUT is often preferred for its safety, portability, and ability to produce immediate results.

What Are the Steps in the PAUT Procedure?

Performing PAUT involves several steps to ensure accurate and reliable inspections:

1. Preparation:

• Clean the surface of the material.

• Select the appropriate probe and wedge based on the material and type of inspection.

2. Calibration:

• Use reference blocks to calibrate the PAUT system for accuracy.

• Adjust sensitivity and focus to detect specific defect types.

3. Scanning:

• Position the probe and begin scanning, steering the beam electronically to maximize coverage.

4. Data Analysis:

• Analyze data for defect indications using 2D and 3D imaging.

• Measure defect size, orientation, and position.

5. Reporting:

• Document results, including defect details and recommendations for maintenance or repair.

Each step ensures comprehensive and reliable inspection results.

Applications of PAUT in Industry

PAUT’s versatility makes it invaluable across a variety of industries:

• Oil and Gas: Inspecting pipelines for corrosion and weld quality.

• Aerospace: Ensuring the integrity of composite materials and structural components.

• Power Generation: Assessing turbines, boilers, and heat exchangers for wear and fatigue.

• Manufacturing: Detecting flaws in critical components during production.

By identifying defects early, PAUT helps industries avoid costly downtime and maintain safety.

Benefits of PAUT Over Other NDT Methods

PAUT offers several advantages over traditional UT and RT methods:

1. Enhanced Accuracy:

• High-resolution imaging for precise defect identification.

• Advanced visualization with 2D and 3D images.

2. Increased Efficiency:

• Faster inspection processes with electronic beam steering.

• Reduced downtime for critical assets.

3. Improved Safety:

• No radiation hazards.

• Suitable for confined spaces and sensitive environments.

4. Versatility:

• Capable of inspecting complex geometries.

• Effective for both surface and subsurface defect detection.

Why Choose ScanTech Instruments for PAUT?

At ScanTech Instruments, we specialize in robotic NDT systems designed to meet real-world challenges. Our PAUT solutions are engineered for precision and reliability, ensuring your inspections deliver the highest quality data.

With over 25 years of experience in NDT, we understand the unique demands of industrial inspection. All our products are proudly designed and manufactured in the USA, making ScanTech your trusted partner for advanced NDT solutions.

Conclusion

Phased Array Ultrasonic Testing (PAUT) is a game-changer in non-destructive testing, providing unparalleled accuracy, safety, and efficiency. From detecting weld defects to mapping corrosion, PAUT helps industries maintain critical infrastructure while minimizing downtime.

Explore our innovative PAUT systems and other NDT solutions at ScanTech Instruments.
