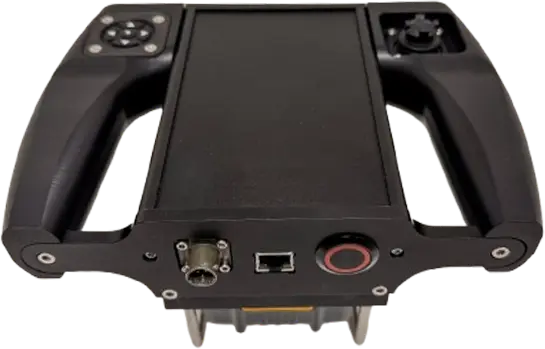

Batt Pack Flex

• • Non-Touchscreen Model – Designed for users who prefer external UT gauges and software.

• • Lightweight & Portable – Compact design ensures easy handling and transport.
  • Intuitive Joystick Control – Provides smooth omni-directional movement for precise scanning.
  • Extended Battery Life – Runs on a 20V DeWalt battery for long-lasting operation.
  • Seamless Scanner Compatibility – Works with X3 Spider, XR Spider, Axis, and Radix Scanners.

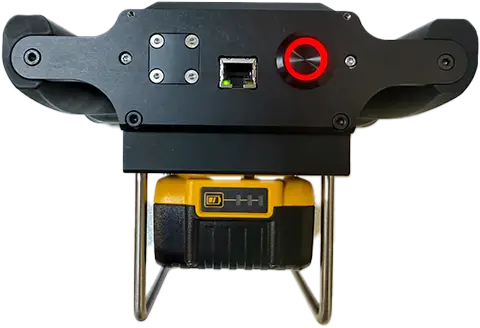

Batt Pack Pro

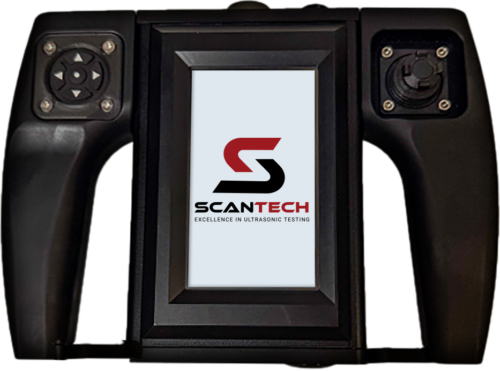

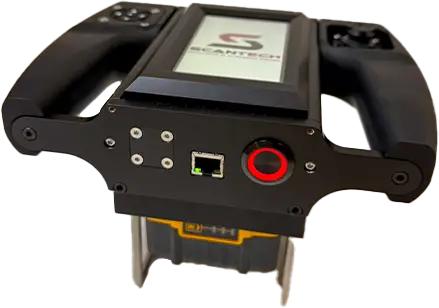

• Touchscreen Model – Integrated display for streamlined control and real-time data access.
• Advanced Functionality – Digital pad provides quick access to essential commands.
• Rugged & Durable – Built to withstand tough field environments.
• Extended Battery Life – Powered by a 20V DeWalt battery for high-performance usage.
• Optimized for Multiple Scanners – Fully compatible with X3 Spider, XR Spider, Axis, and Radix Scanners.

Seamless Scanner Compatibility

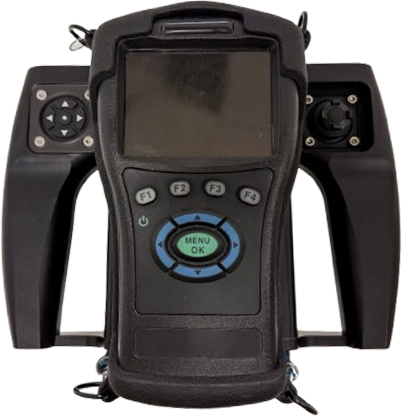

The Batt Pack integrates seamlessly with the most common thickness gauges, offering flexibility in your inspections.

• • B-Scan Compatibility – The Batt Pack currently supports B-Scan & C-Scan(PRO only) functionality with the following UT brands: ScanTech STC-X Controller, Evident MX3, Danatronics, and future devices.

• • C-Scan Compatibility – Pro is compatible with any UT system for C-Scan applications.

* The Batt Pack includes two 8Ah DeWalt batteries and supports single or dual-element probes. It complements any full system or integrates with existing UT and scanners for remote, portable operation. Thickness gauge shown is for demonstration only and is not included. Optional complete packages available.

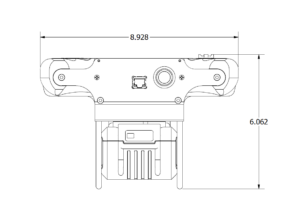

Technical Specifications

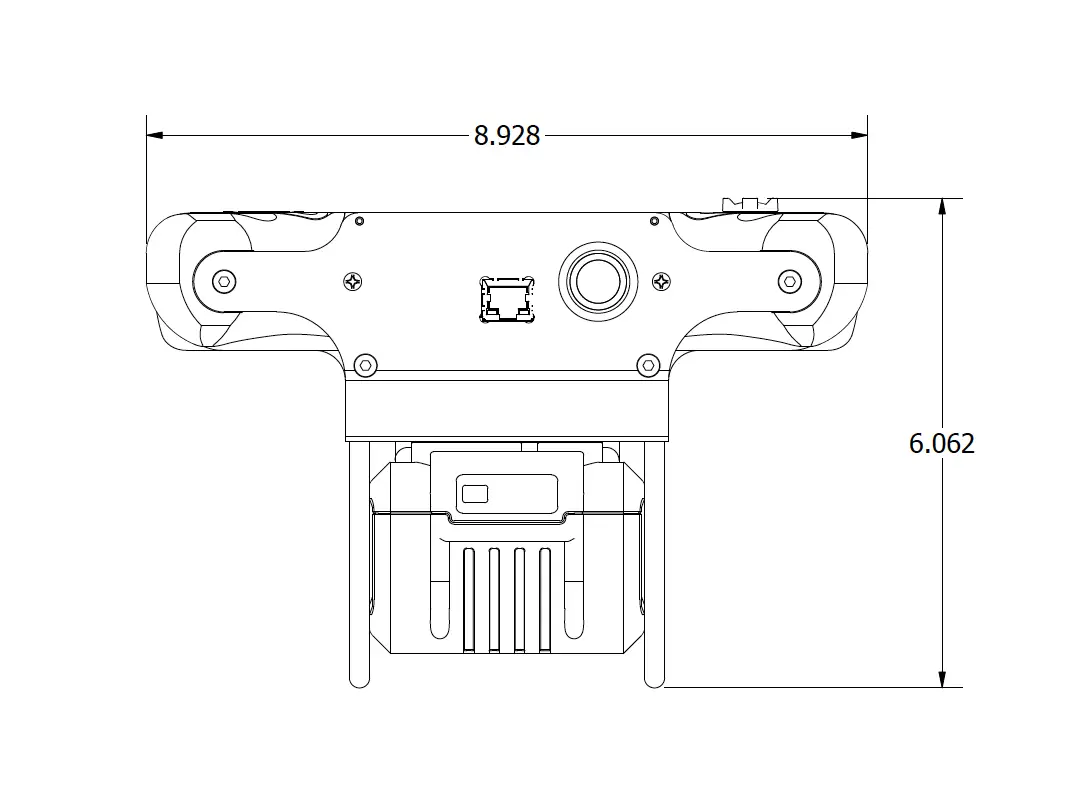

• • Height (battery rails to top of joystick): 6.1 in. (154 mm)
•
  • Height with Touchscreen: 6.1 in. (156 mm)
•
  • Length (handle to handle): 8.9 in. (227 mm)
•

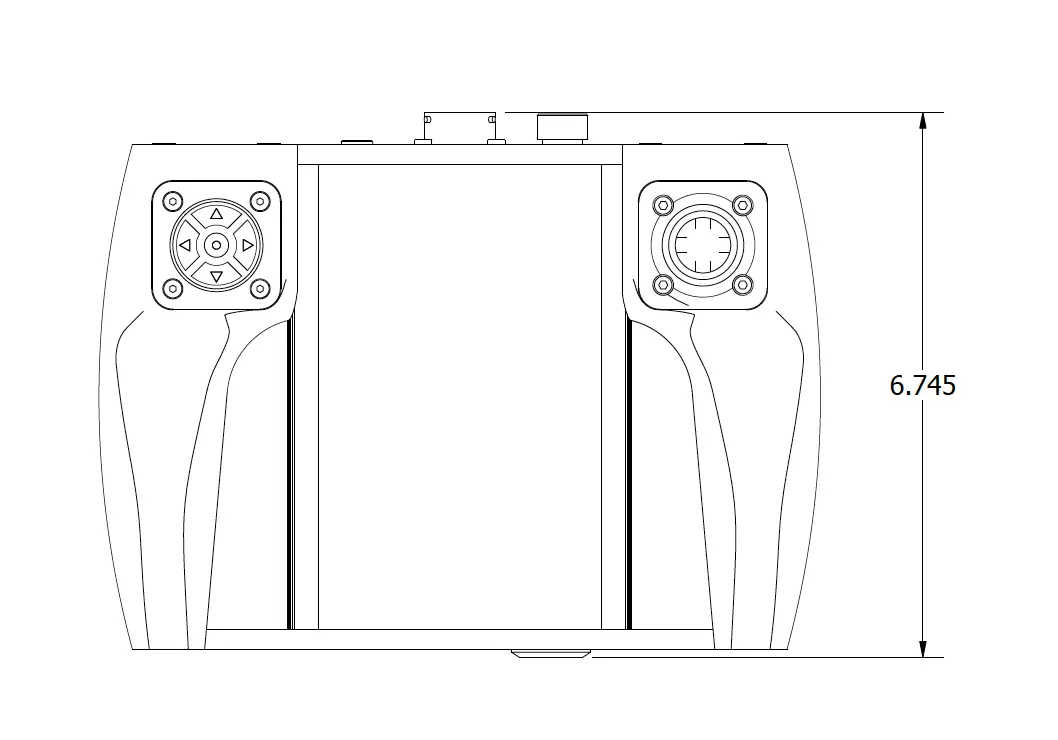

  • Width (front plate to back plate): 6.7 in. (171 mm)
•
  • Battery: Any 20V MAX Dewalt battery (8Ah recommended)
•
  • Weight without battery: 4.2 lb (1.9 kg)
•
  • Weight with battery: 0.9 lb – 2.2 lbs (0.4 – 1 kg)
