Explore the apex
ANTI-TIP PROBE MECHANISM
Smooth. Screw-Driven, Raster Motion.
POWERFUL DRIVE SECTION. PULL UP TO ---
ADJUSTABLE BODY FOR DIFFERENT RADIUS.

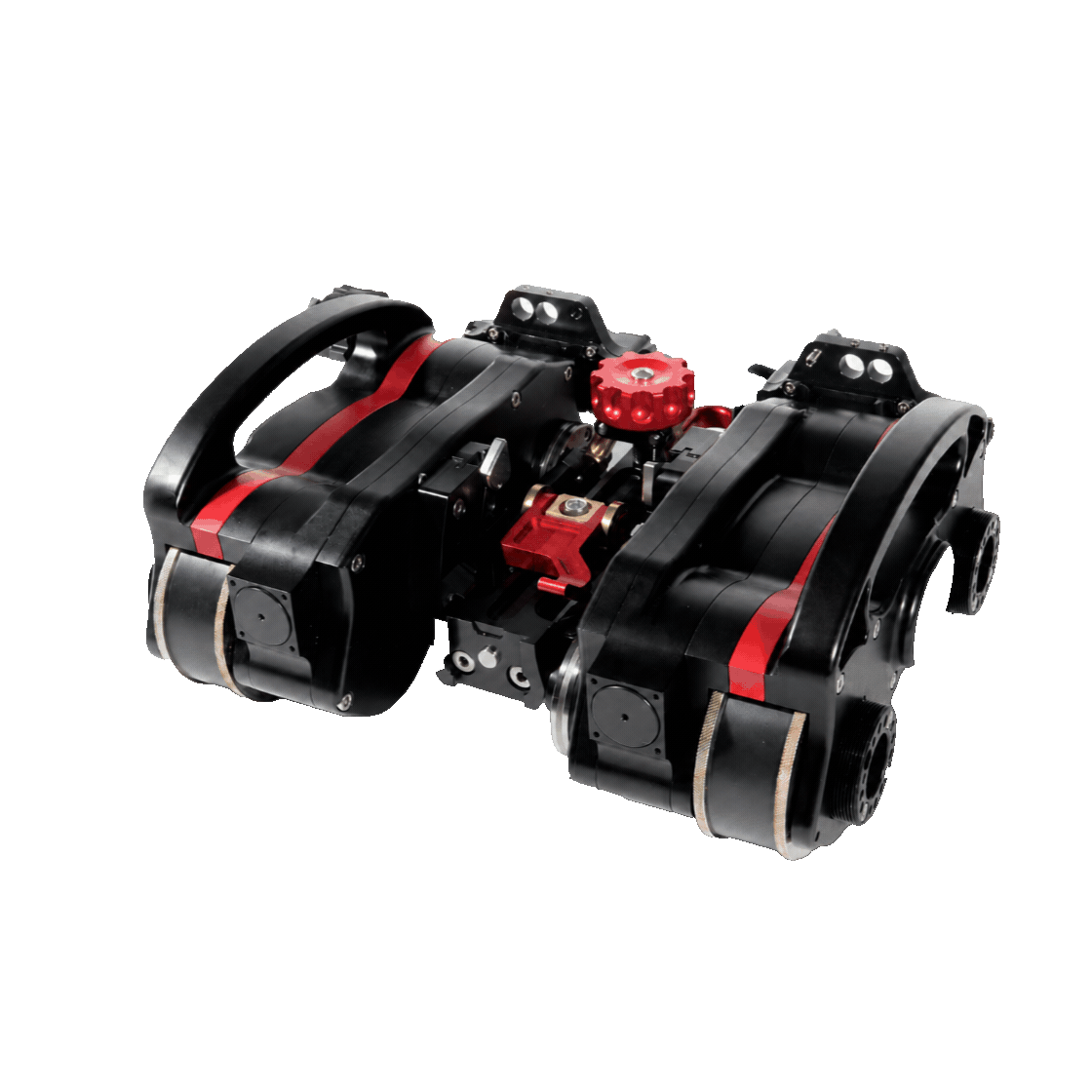

The modular UT scanner built for real inspection work.
Built for speed, probe stability, and modular flexibility, Apex helps crews adapt to real field conditions without overbuying a heavy multi-tech crawler.
Fast Raster Scanning
Supports efficient C-scan and corrosion mapping workflows where scan coverage and repeatability matter.
One Platform. Three Ways to Scan.
Apex brings corrosion mapping, B-scan, and weld inspection workflows into one modular scanner platform.
Stable UT Data Collection
Probe stability and controlled contact help support stronger signal quality throughout the scan.
A Smarter Way to Scan
- Modular platform for B-scan, C-scan, and weld scan configurations.
- Stable probe contact supports reliable ultrasonic signal quality.
- Tool-free adjustments help reduce setup time in the field.

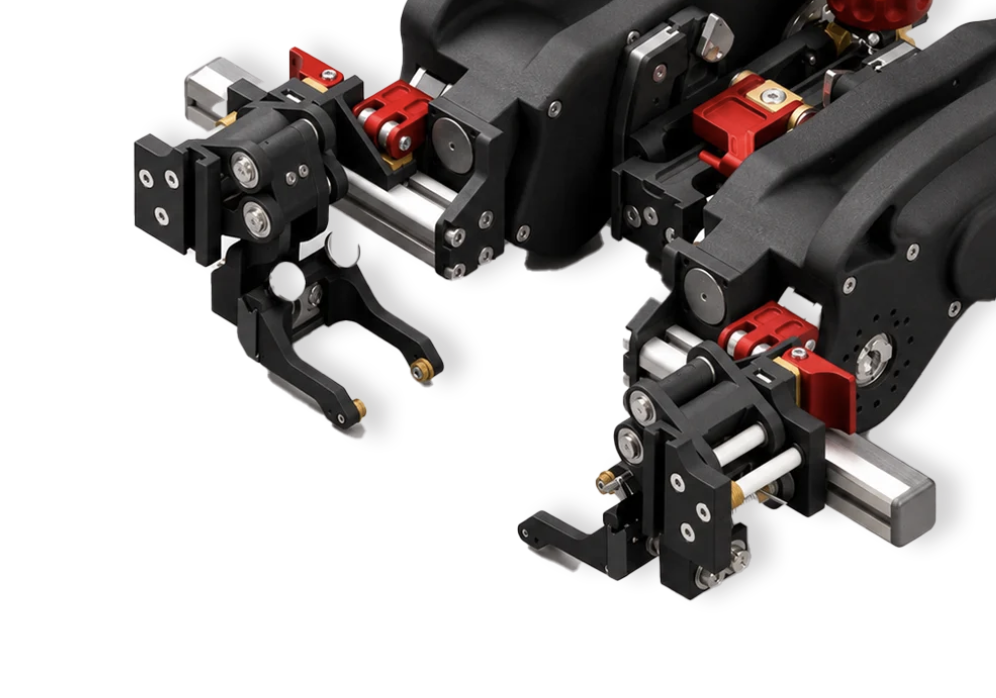

MODULAR ATTACHMENT SYSTEM
From raster arm corrosion mapping to B-scan thickness profiling and weld inspection setups, Apex gives crews a flexible scanner platform without adding unnecessary crawler complexity.
Each configuration is built around stable probe contact, repeatable movement, and practical field setup.
BASE WIDTH
10.8" - 12.0"
BASE HEIGHT
4.95"
DRIVE SPEED
6 IN/SEC
WEIGHT
19 LBS
MIN PIPE OD
3"
AXIAL DIAMETER
12” OD w/ 9” inspection width

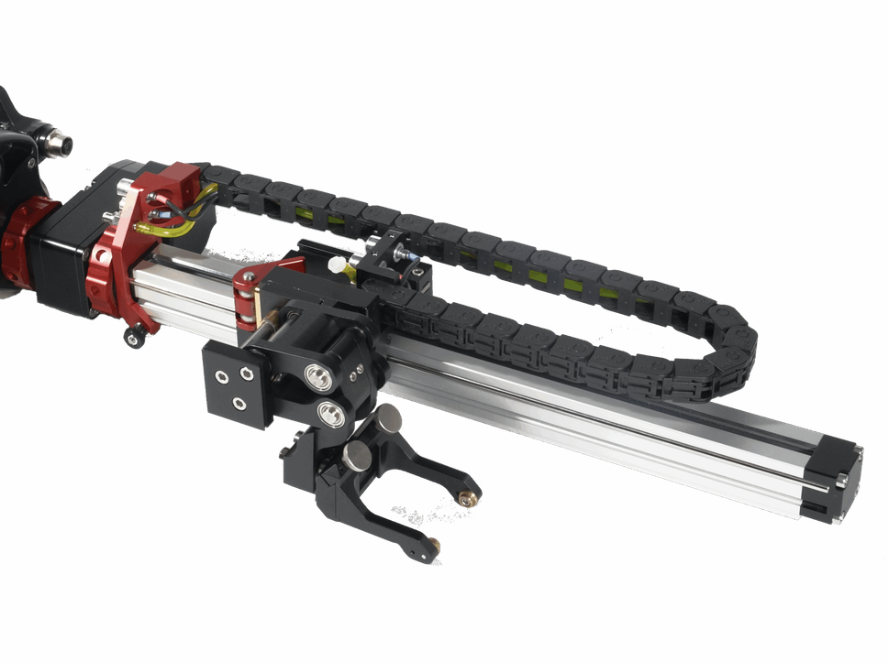

RASTER ARM (LEAD SCREW)
36 in/sec
WARRANTY
1 YEAR
