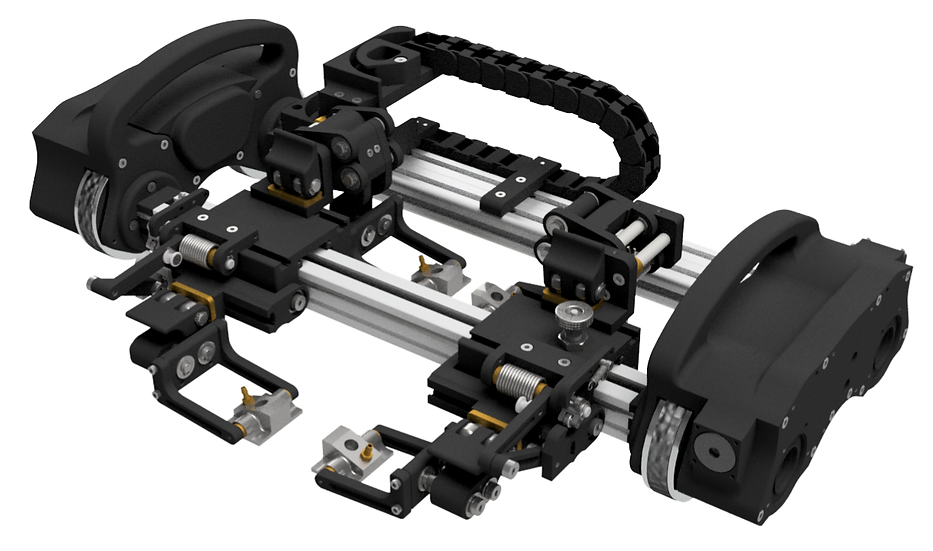

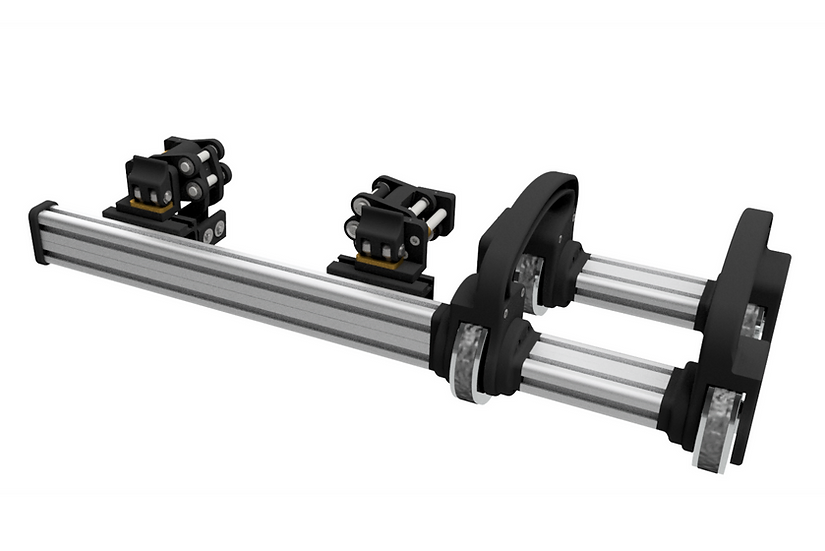

XS Weld Raster Scanner

Book a Demo Today!

DOWNLOAD
THE BROCHURE
TO LEARN MORE
Get detailed product specifications now!

Key Features

  • Wide Application Range: Ideal for various inspection tasks including automated raster scans and weld scans.
  • Efficient Configuration Switching: Quickly change between raster and weld scan setups, enhancing operational efficiency.
  • Customizable Options: Tailor the scanner to meet your specific needs with multiple customization options.




Customization Options

  • Length: Available in 300 mm or 600 mm configurations to suit different inspection requirements.
  • Number of Probes: Choose from configurations with 1, 2, or 4 probes to match your application needs.
  • Transducer Types: Compatible with Phased Array, TOFD, or Conventional Ultrasonic transducers for versatile inspection capabilities.
  • Drive Type: Select between manual or automatic drive based on your operational preferences.



Applications

  • Automated Raster Scans: Perform detailed and comprehensive raster scans with high precision.
  • Automated Weld Scans: Efficiently inspect welds for defects and ensure structural integrity.




Technical Specifications

  • Precision Engineering: Built to provide accurate and reliable scan results.
  • High Power and Torque: Equipped with robust motor drives to handle demanding inspection tasks.
  • Modular Design: Allows for easy upgrades and modifications as inspection needs evolve.

APEX VIDEOS

APEX ADDITIONAL PARTS ASSEMBLY
APEX ADD ONS
Play Video
Speed Test: Apex vs. Competitor
Play Video
APEX RIVER SCAN
APEX VIDEO IMAGE OVERLAY
Play Video about APEX VIDEO IMAGE OVERLAY

ATTACHMENT MODULES

B-SCAN
  • New Mid-Section Body design with high compliance suspension

  • Toolless attachment points and wheel angle adjustment for small radii

  • Probe coupling incorporates our ACR design for reducing turbulence and water consumption

  • Our newest spring design offers the most constant contact force over full travel to date.
C-SCAN
  • C-Scan arms are quick-attached for either front mounted or side
    mounted raster scanning

  • Lead Screw and Belt Drive configurations are both available

  • Lead screw raster module allows toolless Quick-Change of the scan
    arm for differing lengths, utilizing the same raster motor pack

  • New Brushless DC Raster motor design with integrated encoder/
    controller/drive offering high torque and performance in a small assembly
WELD-SCAN
  • Suspension Lock mechanisms for better tracking on axial weld inspection applications

  • Quick Latches provide easy probe spacing and additional height adjustment for the existing high vertical compliance

  • Rigid Tool free probe width adjustment

  • Patented Anti-tip mechanism ensures superior probe contact

Ready to Learn More? Get in Touch or Book a Meeting Today!

Schedule a meeting with our experts to explore how our advanced NDT solutions can benefit your operations.

Testimonial

Client Feedback & Reviews

Read what our customers are saying about ScanTech.
